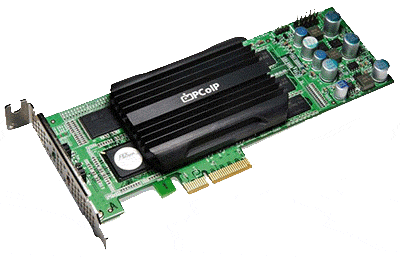

Server offload card type
PCI Express® 1.1 x8
4.376” height x 6.6” length
single slot card compliant with PCI-SIG
PCIe CEM 2.0
System requirements
Available PCI Express x8 or x16 slot
ESXi 4.1 (5.0 coming soon)
VMware View 4.6 or 5.0
Memory
2GB of onboard DDR3 SDRAM with ECC protection
Display support
Up to 64 displays at a maximum resolution of 1920×1200
Power
Power supplied to card via PCIe interface: 15W typical, 20W maximum
Regulatory
Product safety approval: UL/cUL
EMI and EMC approval: FCC Class B, Canada ICES / NMB-003 Class/Classe B, CE, VCCI, C-TICK, CNS, KCC, WEEE, RoHS
Environmental
Temperature:
Operational (0℃ to 55℃)
Storage (-20℃ to 70℃)
Humidity:
Relative (non-condensing): 10% to 90%
Storage: 5% to 95%
Thermal cooling
Single slot passive heat sink
